起源の場所:
中国
ブランド名:
Hoan
モデル番号:
JZP-5 だった2
| Warranty | 1 Year |
| Temperature Resistance | Yes |
| Model | JMZ SERIES |
| Vibration Reduction | High |
| Longevity | Long-lasting |
| Installation Method | Vertical or Horizontal |
| Flexibility | Flexible |
| Corrosion Resistance | Highly resistant to corrosion |
| Application | Automotive, industrial, machinery |
| Operating Temperature | -40 to 200 degrees Fahrenheit |

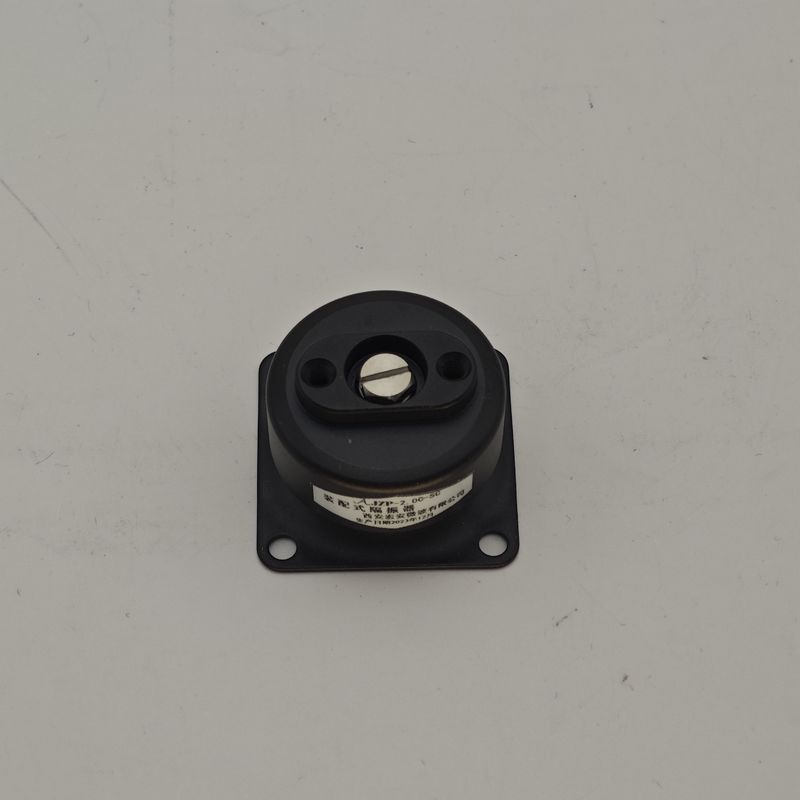

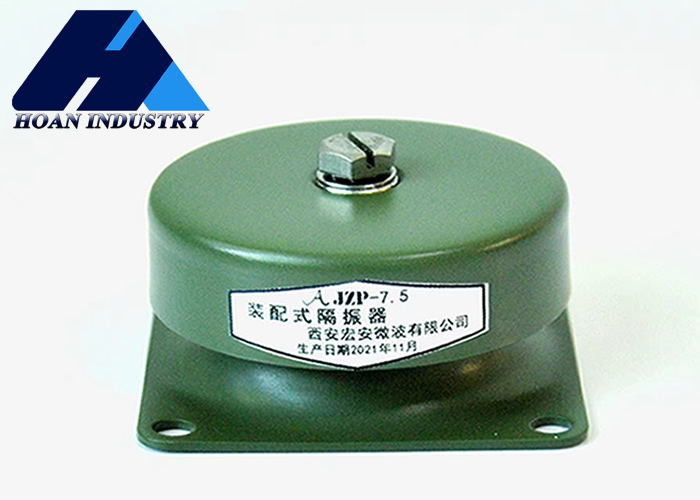

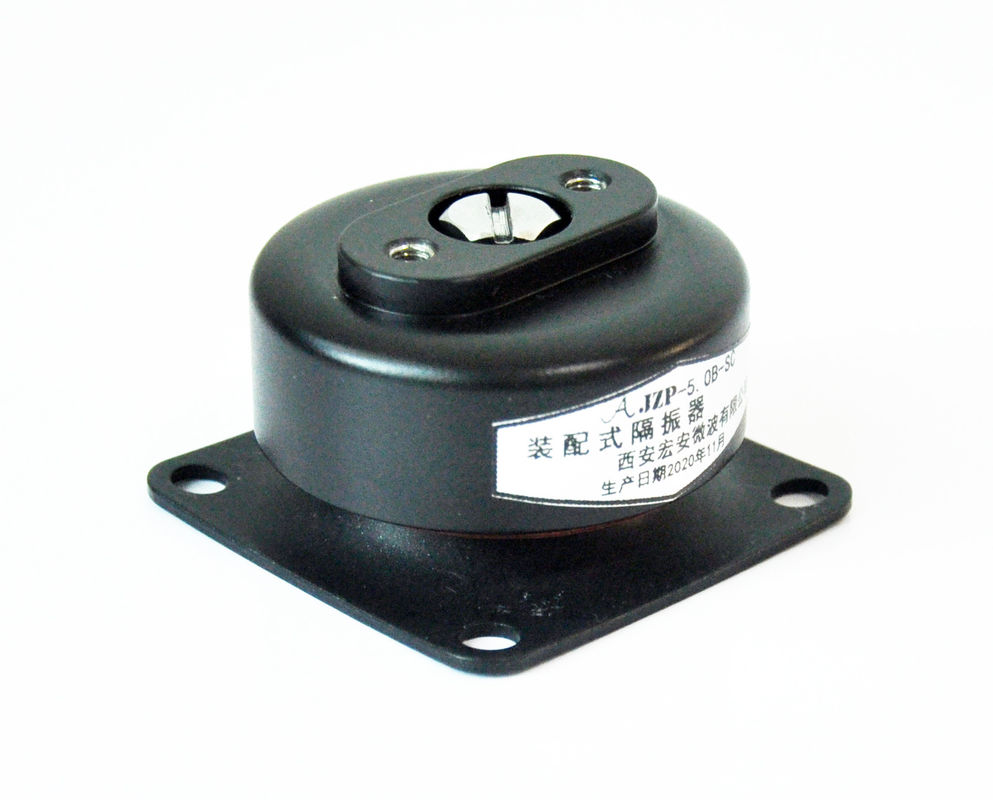

Complex and harsh environments can compromise equipment operation, but the JZP rubber damping isolator from Xi'an Hoan provides steadfast protection in these challenging conditions.
This shock absorber features exceptional environmental adaptability, maintaining optimal performance in both high and low temperature conditions. The rubber material resists softening in heat and brittleness in cold, preserving its vibration isolation properties and elasticity. It demonstrates outstanding resistance to chemically polluted environments, damp heat, salt spray, and mold.
In marine applications, where equipment faces hot, humid, salt-spray conditions, the JZP isolator ensures long-term stable operation of shipborne electronic and mechanical equipment. It also provides reliable vibration isolation protection in industrial environments with severe chemical pollution, such as oil extraction operations.
| Model | D | H | h | A | B | d1 | MG | R |
|---|---|---|---|---|---|---|---|---|
| JZP | 58 | 29 | 17 | 50 | 60 | ∅5.5 | M6 | 5 |
| Model | Pz Nominal Load (KG) | Deflection Displacement (mm) | Resonant Frequency (Hz) | Working Temperature (℃) | Shock (Ks) | Peak Response G |
|---|---|---|---|---|---|---|
| JZP-2.5 | 2.5 | ≤0.3 | 35±3 | -45～+65 | 100g/6ms | ≤3.6km/s² |
| JZP-3.2 | 3.2 | |||||
| JZP-4.2 | 4.2 | |||||
| JZP-5.2 | 5.2 | |||||
| JZP-6.0 | 6.0 | |||||
| JZP-7.0 | 7.0 | |||||
| JZP-7.5 | 7.5 | |||||
| JZP-8.5 | 8.5 | |||||
| JZP-10.5 | 10.5 | |||||
| JZP-13.5 | 13.5 | |||||
| JZP-15 | 15 |
問い合わせを直接私たちに送ってください.
