起源の場所:
中国
ブランド名:
Hoan
モデル番号:
JZP-7.5-SC-SC1

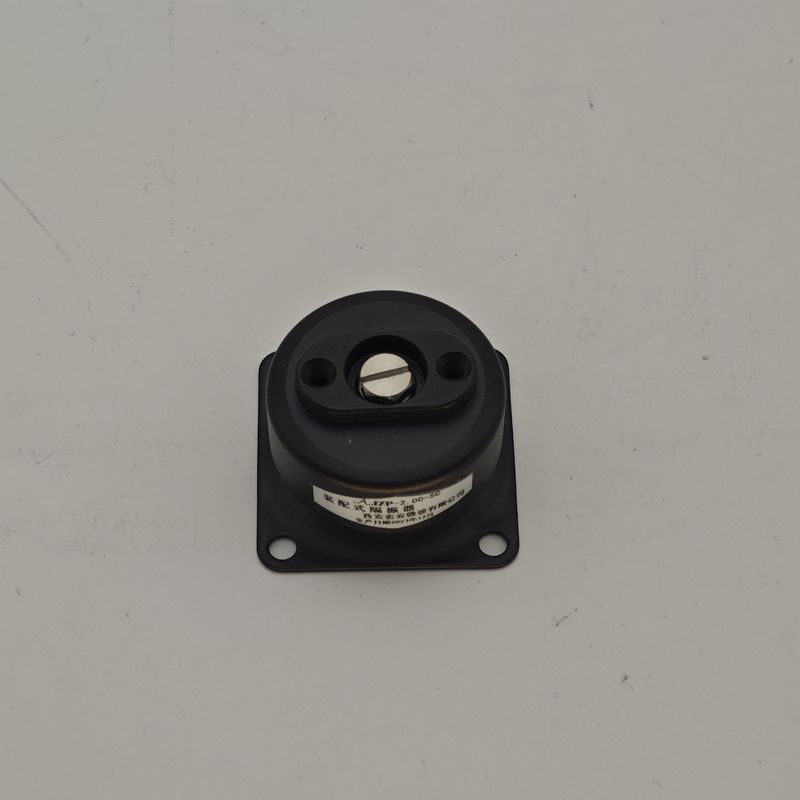

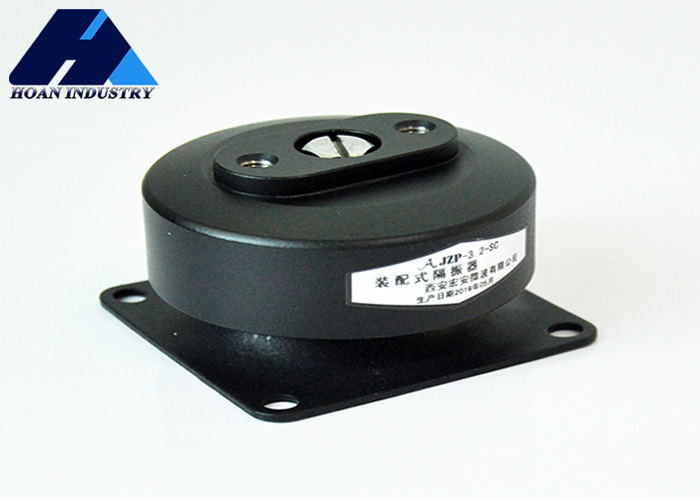

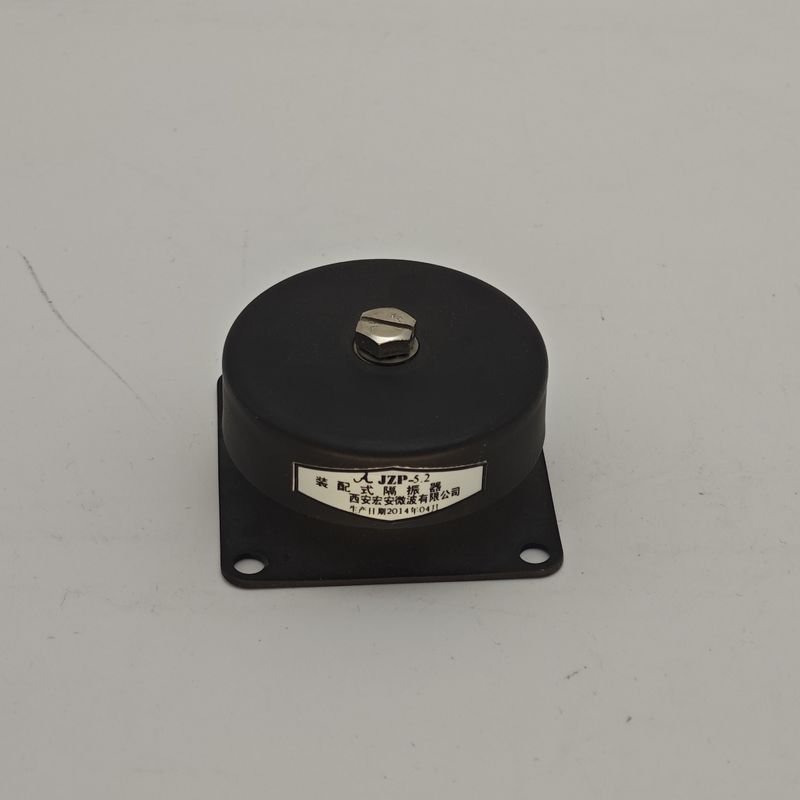

Reshaping the "Quiet Foundation" for Precision Equipment: Xi'an Hoan JZP-sc-sc1 Vibration Isolator
In precision manufacturing and measurement environments where micron-level vibration control is critical, the JZP-sc-sc1 series friction damping vibration isolators provide an advanced solution. Designed specifically for high-end precision equipment, these isolators create a dynamically stable foundation that goes beyond basic vibration isolation.
Ideal for scanning electron microscopes (SEM), wafer inspection equipment, high-precision machine tools, and other applications requiring vibration-free environments.
| Model | D (mm) | H±1 (mm) | h (mm) | A±0.2 (mm) | B (mm) | d | d2 | R | b (mm) |
|---|---|---|---|---|---|---|---|---|---|
| JZP-SC-SC1 | 60 | 36 | 24.5 | 50 | 60 | M5 | ∅5.5 | 5 | 28 |
| Model | Nominal Load (KG) | Static Displacement (mm) | Working Temperature (℃) | Resonance Frequency (Hz) | Impact Test | Limited Period |
|---|---|---|---|---|---|---|
| JMZ-3.2-SC-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-4.2-SC-SC1 | 4.2 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-5.2-SC-SC1 | 5.2 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-6.0-SC-SC1 | 6.0 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-7.0-SC-SC1 | 7.0 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-7.5-SC-SC1 | 7.5 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-9.0-SC-SC1 | 9.0 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-10.5-SC-SC1 | 10.5 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-13.5-SC-SC1 | 13.5 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JZP-15-SC-SC1 | 15 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
