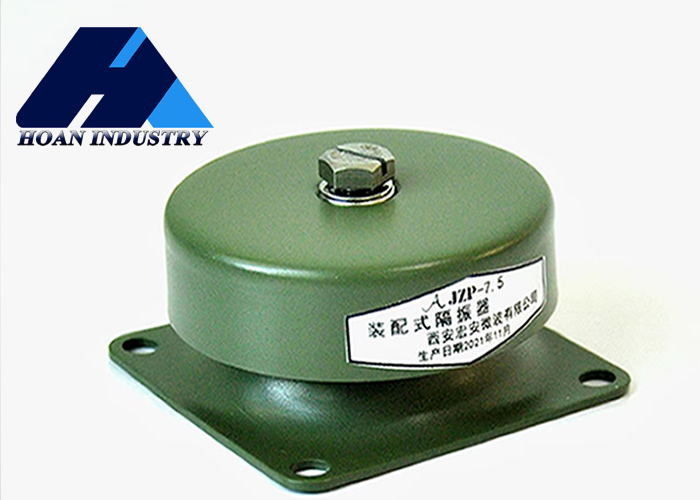

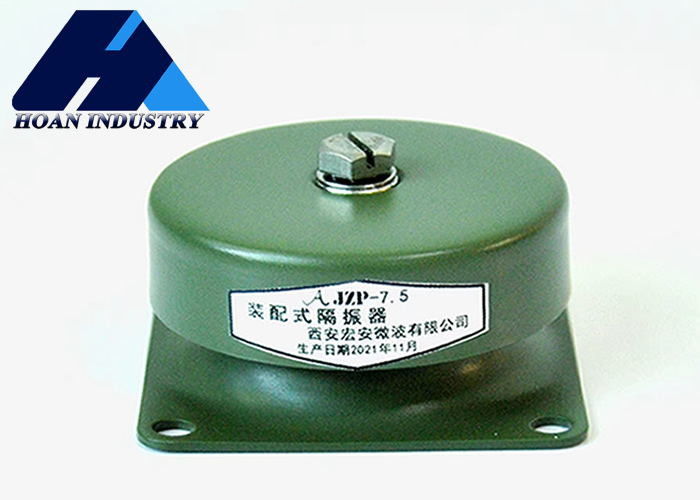

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Temperature Resistance Rubber Shock Absorber

50mm Width Vibration Isolator

30 Hz Resonance Frequency Friction Damping Vibration Isolator

起源の場所:

中国

ブランド名:

Hoan

モデル番号:

JZP-9.0-SC-SC1

連絡 ください
引金 を 求め て ください
製品詳細
温度抵抗:
摂氏100度まで
幅:
50mm
材料:
ゴム
UV抵抗:
強い
共鳴頻度:
30のHZ
負荷容量:
100~5000ポンド
取り付け方向:
垂直
パッキング:
標準梱包
軸の剛性:
50n/mm
振動周波数:
5Hz〜100Hz
品質:
産業グレード
マーケティングタイプ:
ホット製品2024
使用法:
産業機械
ハイライト:

Temperature Resistance Rubber Shock Absorber

,

50mm Width Vibration Isolator

,

30 Hz Resonance Frequency Friction Damping Vibration Isolator

支払いと送料の条件
最小注文数量
4
支払条件
L/C、D/A、D/P、T/T、Western Union、MoneyGram
製品説明
JZP-9.0-SC-SC1 Rubber Shock Absorber - Essential Component for Industry 4.0 Smart Production Lines
JZP-SC-SC1 Series: The Efficiency Multiplier for Smart Manufacturing
Under Industry 4.0 frameworks, production line intelligence and high throughput demand unprecedented equipment stability. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave serve as critical "efficiency multipliers" for smart production lines.
Key Performance Advantages:
  • Effectively mitigates transient impacts and wide-frequency vibrations from industrial robots and AGV systems
  • Maintains positioning accuracy for precision assembly robots
  • Ensures clear imaging for visual inspection systems
  • Reduces quality issues like connector insertion failures
  • High damping characteristics enable rapid equipment stabilization between movements
  • Robust, maintenance-free design meets industrial reliability requirements
By implementing JZP-SC-SC1 isolators, manufacturers achieve not just vibration control but complete production process optimization - enabling truly efficient, high-reliability "dark factory" operations.
Dimension Specifications
JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery 0
Model D (mm) H±1 (mm) h (mm) A±0.2 (mm) B (mm) d d2 R b (mm)
JZP-SC-SC1 60 36 24.5 50 60 M5 ∅5.5 5 28
Technical Parameters
Model Nominal Load (KG) Static Displacement (mm) Working Temperature (℃) Resonance Frequency (Hz) Impact Test Limited Period
JMZ-3.2-SC-SC1 3.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-4.2-SC-SC1 4.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-5.2-SC-SC1 5.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-6.0-SC-SC1 6.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-7.0-SC-SC1 7.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-7.5-SC-SC1 7.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-9.0-SC-SC1 9.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-10.5-SC-SC1 10.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-13.5-SC-SC1 13.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-15-SC-SC1 15 ≤0.3 -45~+65 41.5±5 100g 12 times 8

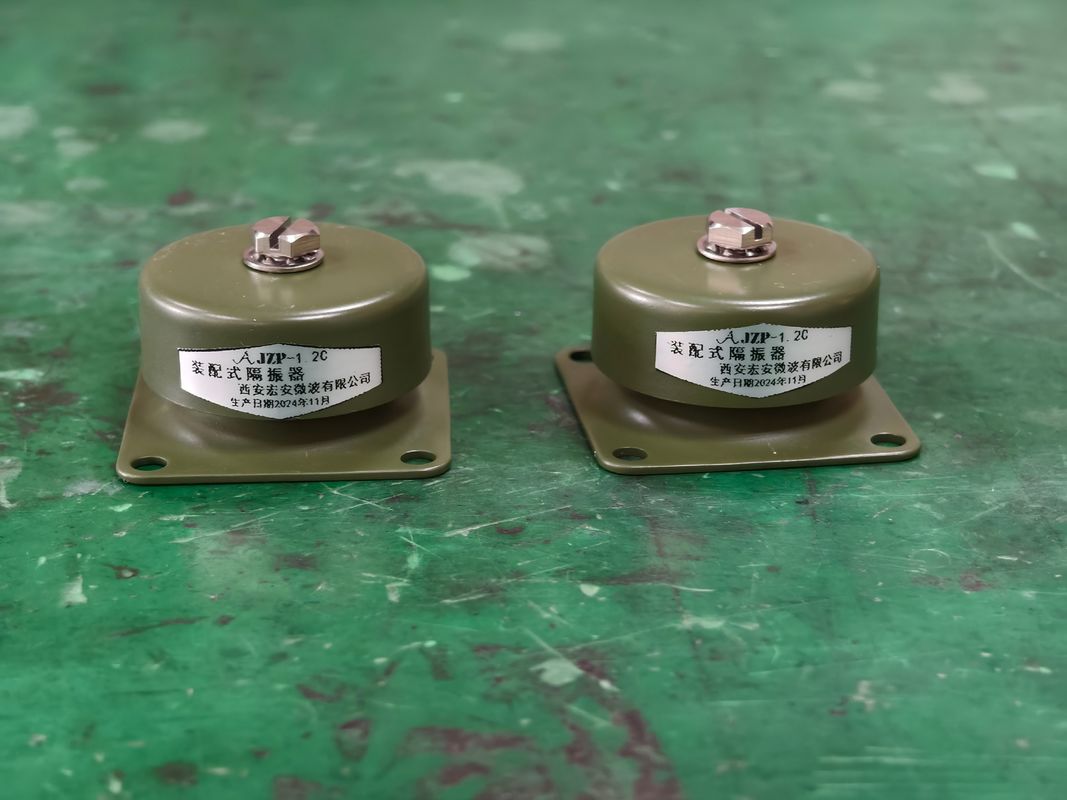

Customer Implementation
JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery 1
