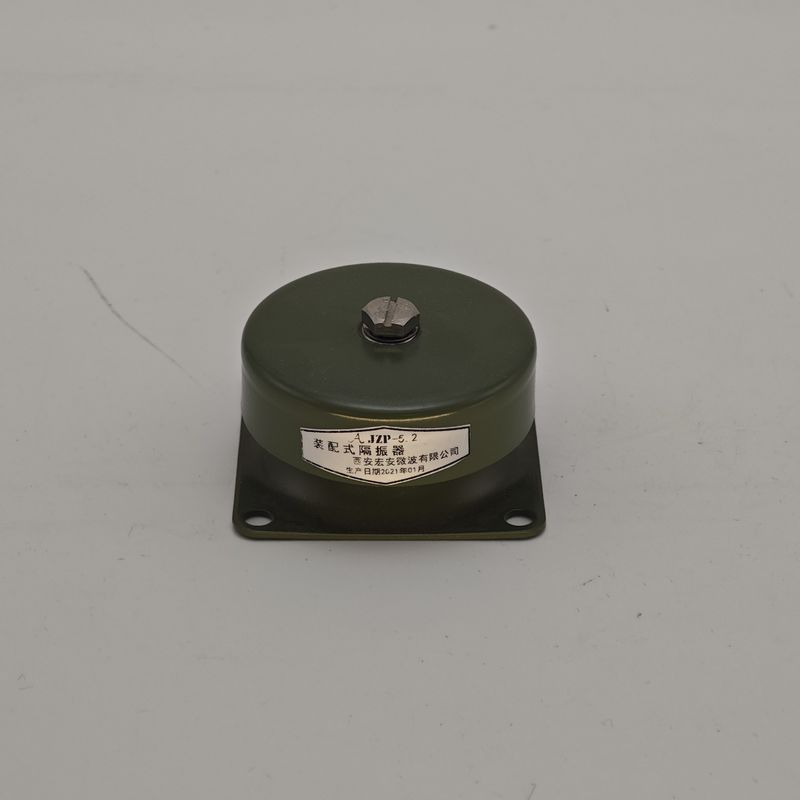

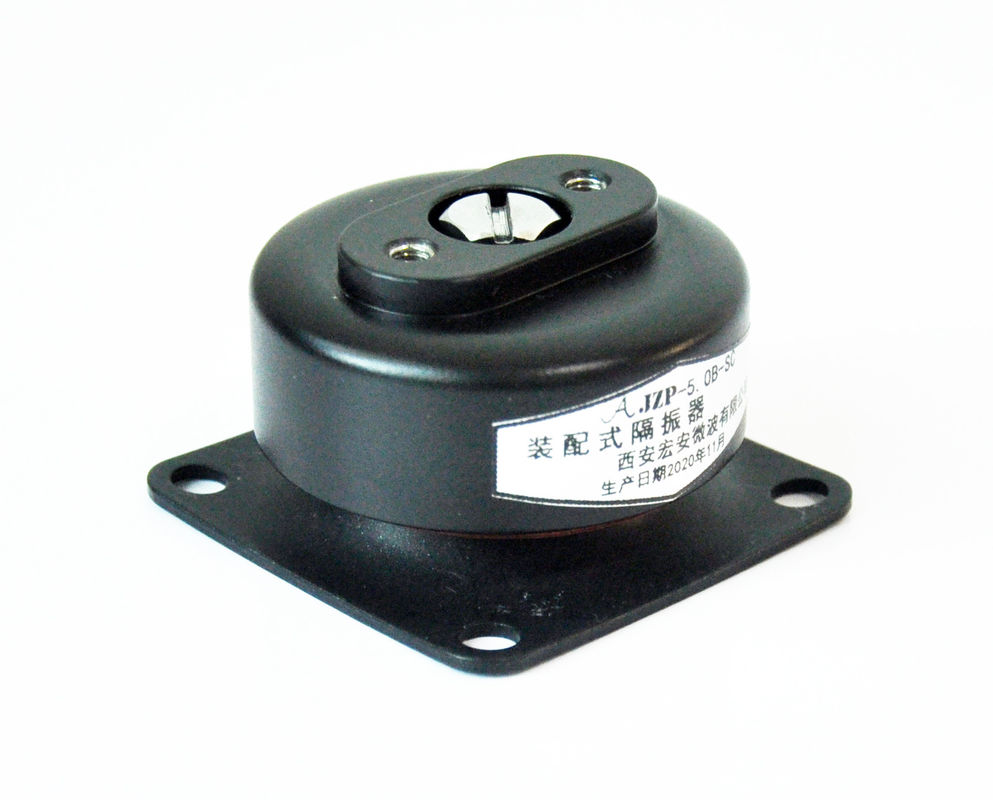

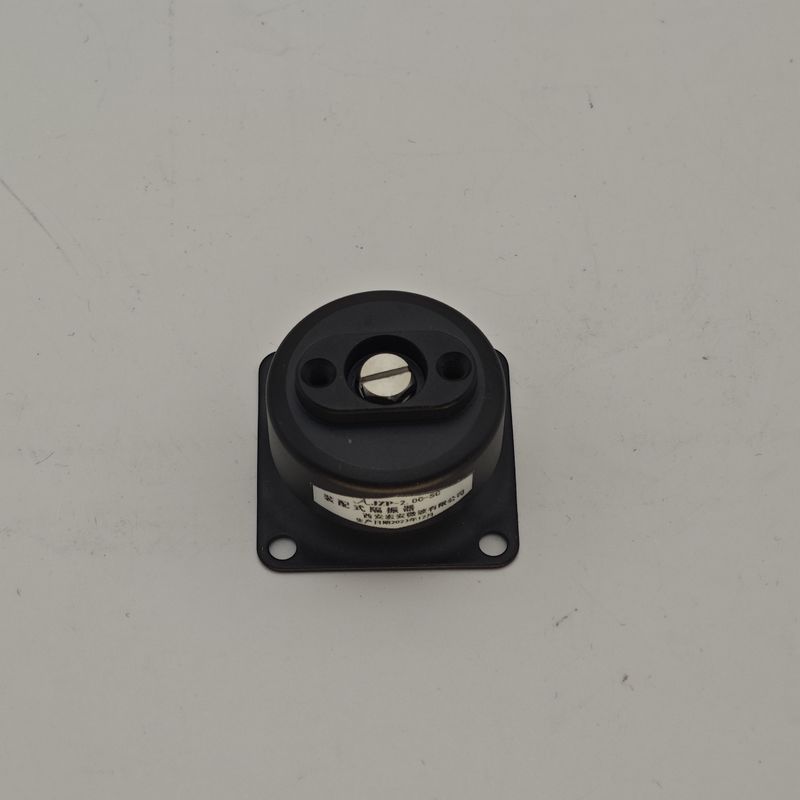

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

起源の場所:

中国

ブランド名:

Hoan

モデル番号:

JZP-3.0B-SC

連絡ください

引金を求めてください

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

製品詳細

形:

円筒形

色:

黒

最大静的負荷:

3kg

振動周波数:

5-50HZ

耐食性:

腐食に耐性があります

取付タイプ:

ねじ付き

特性:

作業頻度が広く,寿命が長い

機械試験報告書:

利用不可

固有周波数:

7Hz-15Hz

簡単なインストール:

シンプルで簡単にインストールできます

材料:

ゴム

特徴:

振動分離

保証:

1年

振動の減少:

高い

ハイライト:

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

支払いと送料の条件

最小注文数量

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

最高の価格を入手する

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

最高の価格を入手する

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

最高の価格を入手する

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

最高の価格を入手する

連絡ください

86-29-88292913

今連絡してください

製品説明

JZP-3.0B-SC Engineered for Extreme Conditions - The Best Rubber Shock Absorber for Military Mining Vehicles

JZP-B-SC Series

Tenacious Protection, Fearless of Rough Terrain - The Outstanding Performance of Xi'an Hoan's JZP Series Under Severe Road Conditions

Not all vehicles travel on smooth highways. Military vehicles, emergency rescue vehicles, mining trucks, and geological exploration vehicles often operate in extreme conditions. Muddy roads, potholes, and gravel paths create high-intensity impacts that test equipment durability. The JZP Series On-Vehicle Modular Vibration Isolators are specifically engineered to protect equipment in these harsh environments.

Shock Isolation: Protection Beyond Conventional Vibration

Unlike steady vibration, shock is an instantaneous, high-energy excitation that can cause structural damage. The JZP Series is designed with shock isolation as a core performance feature. Its damping materials and structural design extend impact duration through large deformation, significantly reducing peak acceleration (G-force) transmitted to equipment. When a vehicle hits a deep pothole, the JZP Series acts like an "airbag" for the equipment, absorbing most damaging forces.

Durability and Environmental Adaptability

In harsh environments like sandstorms, rain, snow, and salt spray, vibration isolator durability is crucial. The JZP Series uses high-quality weather-resistant materials with advanced surface treatments (galvanizing and Dacromet coating) for excellent corrosion resistance and anti-aging properties. These isolators resist both mechanical stress and chemical/environmental erosion, offering a service life far exceeding ordinary products.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Performance

Vibration Performance Curve

Impact Performance Curve
