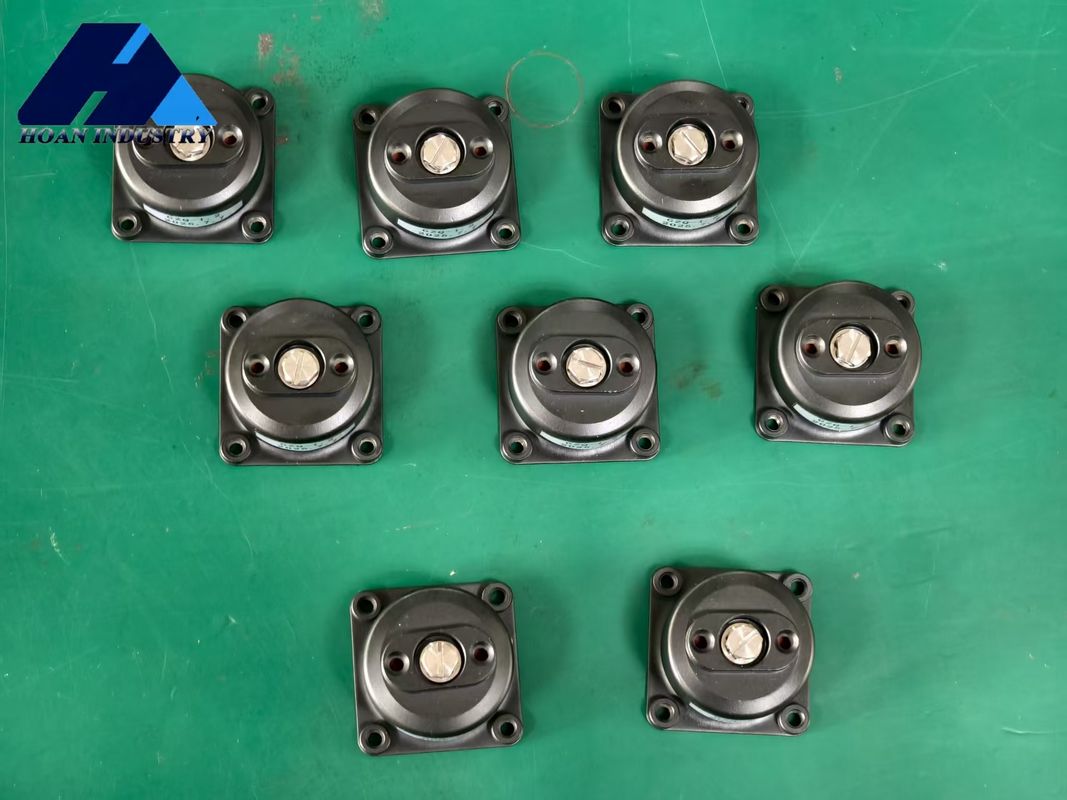

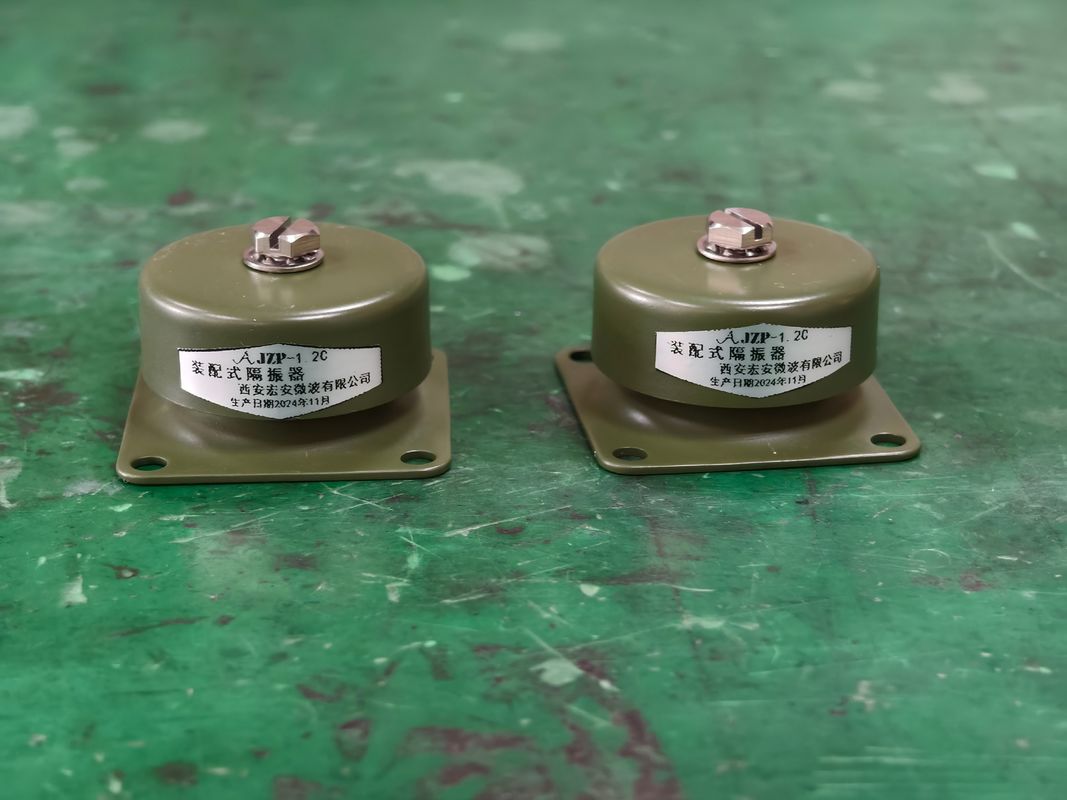

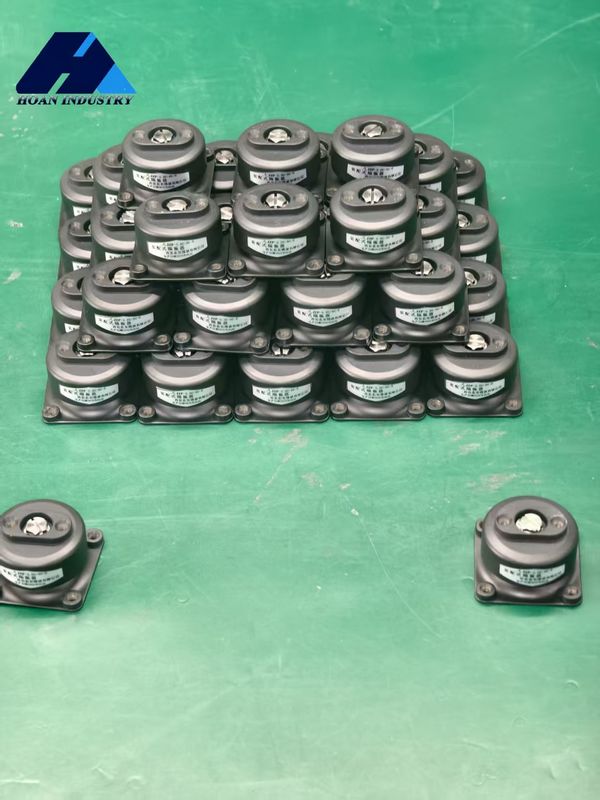

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Name: JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.5B-SC
Availability: InStock

ブランド名:	Hoan
Model Number:	JZP-5.5B-SC
MOQ:	4
支払い条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

詳細情報

製品説明

詳細情報

起源の場所:

中国

耐候性:

素晴らしい

振動周波数:

5-50HZ

インストール:

取り付けが簡単

Appliocation:

自動車,機械,エンジン

該当する業界:

エネルギーとマイニング

抵抗:

化学,熱, 天気

分離周波数:

5Hz

特性:

伸縮性があるよい、耐久性を

長さ:

3~24インチ

柔軟性:

フレキシブル

特徴:

振動分離

最大静的負荷:

5.5kg

ハイライト:

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

製品説明

JZP-5.5B-SC Rubber Shock Absorbers for Easy Installation and Maintenance with User-Centric Design

JZP-B-SC Series

Easy Installation, Hassle-Free Maintenance - User-Centric Design of the JZP Series Vibration Isolators

A high-quality engineering product should not only deliver outstanding performance but also offer a superior user experience. When designing the JZP Series On-Vehicle Modular Vibration Isolators, Xi'an Hoan Microwave Co., Ltd. fully considered the convenience of installation, commissioning, and maintenance, striving to make advanced technology simple and user-friendly.

The Essence of "Modular" Design

The "modular" feature of the JZP Series means it typically comes as a complete, standardized unit. Users do not need to mix damping materials on-site or perform complex structural assembly. In most cases, only common tools and bolt connections are required to firmly mount equipment on the vehicle base via the JZP Vibration Isolators. This significantly lowers the technical threshold and time cost of installation, while avoiding performance degradation caused by improper installation.

Visualization and Maintainability

Many products in the JZP Series are designed with intuitive markings and error-proof structures to ensure correct installation orientation. Their structure is usually easy to inspect, allowing users to visually check for obvious aging or damage to elastic components. For applications requiring regular inspection or replacement, the modular design enables quick and cost-effective replacement of individual vibration isolators--no need to disassemble the entire equipment.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Curve of JZP-B-SC Series

Vibration

Impact
