Place of Origin:
China
ブランド名:
Hoan
証明:
ISO9001:2015
モデル番号:
JGX-0958A-99A
JGX-0958A Series

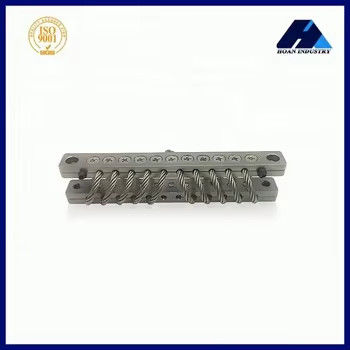

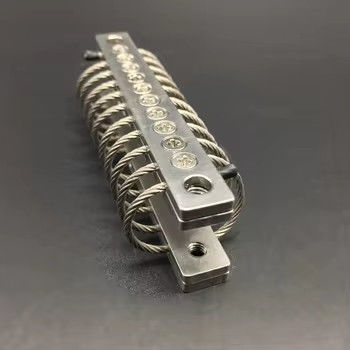

The JGX-0958A steel wire rope vibration isolator developed by Xi'an Hoan Microwave Co., Ltd. is a high-performance shock-resistant vibration isolation device specially designed for precision instruments, electronic equipment and military facilities. The product is formed by winding high-quality stainless steel wire ropes, and realizes multi-directional vibration isolation through a unique structural design, effectively absorbing vibration and impact energy from equipment operation or the external environment. It has a wide operating temperature range (-40℃～+120℃) and strong corrosion resistance, making it suitable for complex working conditions such as ships, vehicle-mounted radars and avionics.
Static-Load Curve
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958A-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958A-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958A-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958A-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958A-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958A-43A | 43 | 68.1 | 67 | 26 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958A-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958A-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958A-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958A-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958A-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958A-43A | 38 | 95 | 47 | 16 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958A-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958A-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958A-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958A-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958A-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958A-43A | 20.4 | 71.7 | 19 | 19 |
* The material of the wire rope splint *
