ブランド名:
Hoan
JGX-0958 Series

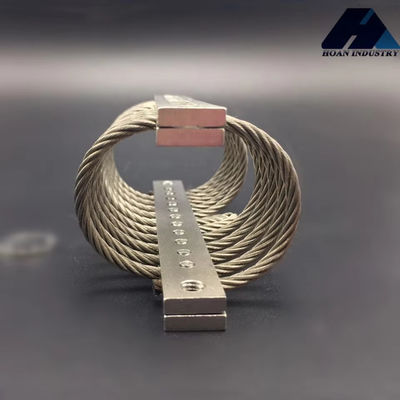

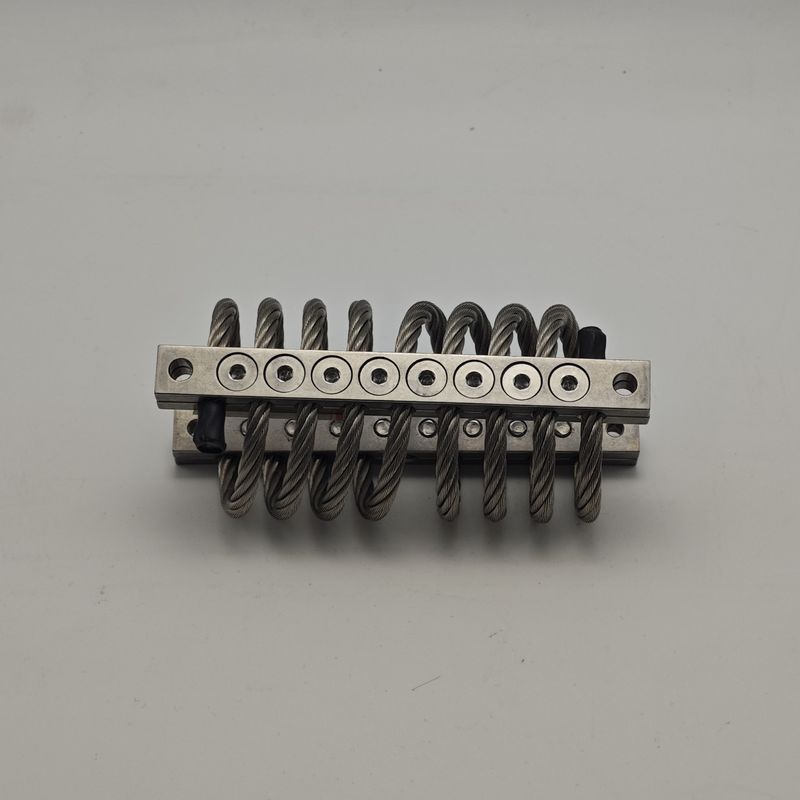

Steel Wire Rope Vibration Isolator JGX-0958A-43A builds multi-dimensional performance barriers with professional technical parameters! Woven from aviation-grade galvanized steel wire ropes into a composite damping structure, its original spiral cross-winding process gives it nonlinear vibration isolation characteristics in three degrees of freedom, with a natural frequency as low as 3-6Hz and vibration isolation efficiency exceeding 96%, precisely isolating low-frequency vibrations of precision equipment. Certified by UL, it withstands -60℃~180℃, maintaining stable damping performance in extreme temperature differences, and its impact resistance reaches 50G, effectively buffering impact loads during construction machinery start-stop.
Key performance advantages lie in three core dimensions:
Precision Isolation: Optimized for 430N rated load, with resonance amplification factor ≤2.5, suitable for vibration-sensitive scenarios like optical instruments and medical equipment;
Environmental Adaptability: 304 stainless steel connectors with fluororubber protective sleeves resist salt spray corrosion for over 1,000 hours, extending service life by 3 times in humid and acid-base environments;
Long-term Reliability: Passed 20 million fatigue cycles without attenuation, dynamic stiffness variation rate <5%, far exceeding industry averages, enabling 10-year maintenance-free operation. From aerospace equipment to high-end manufacturing, JGX-0958A-43A safeguards equipment operation with military-grade performance.
Static-Load Curve
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 149 | 34.0 | 366 | 179 |
| 2 | JGX-0958A-138A | 138 | 37.1 | 320 | 152 |
| 3 | JGX-0958A-108A | 108 | 40.1 | 242 | 110 |
| 4 | JGX-0958A-99A | 99 | 44.7 | 205 | 91 |
| 5 | JGX-0958A-95A | 95 | 49.8 | 182 | 79 |
| 6 | JGX-0958A-54A | 54 | 66.0 | 86 | 33 |
| 7 | JGX-0958A-43A | 43 | 68.1 | 67 | 26 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 120.3 | 47.8 | 236 | 103 |
| 2 | JGX-0958A-138A | 111.2 | 51.8 | 208 | 88 |
| 3 | JGX-0958A-108A | 90.8 | 55.9 | 159 | 65 |
| 4 | JGX-0958A-99A | 84.0 | 63.0 | 137 | 54 |
| 5 | JGX-0958A-95A | 79.4 | 71.1 | 123 | 47 |
| 6 | JGX-0958A-54A | 47.7 | 91.9 | 60 | 21 |
| 7 | JGX-0958A-43A | 38 | 95 | 47 | 16 |
| No | Model |
Max Static Load (kg) |
Max Defelection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/M) |
| 1 | JGX-0958A-149A | 93.1 | 36.1 | 130 | 130 |
| 2 | JGX-0958A-138A | 88.5 | 39.1 | 112 | 112 |
| 3 | JGX-0958A-108A | 68.1 | 42.2 | 77 | 77 |
| 4 | JGX-0958A-99A | 63.6 | 47.2 | 65 | 65 |
| 5 | JGX-0958A-95A | 61.3 | 52.8 | 60 | 60 |
| 6 | JGX-0958A-54A | 27.2 | 68.1 | 27 | 27 |
| 7 | JGX-0958A-43A | 20.4 | 71.7 | 19 | 19 |
