JGX-1598D-657B All-Metal High-Damping Wire Rope Vibration Isolator for Maintenance-Free Industrial Shock Absorption

JGX-1598D-657B All-Metal Wire Rope Vibration Isolator

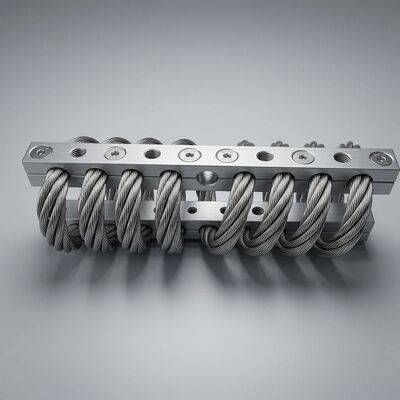

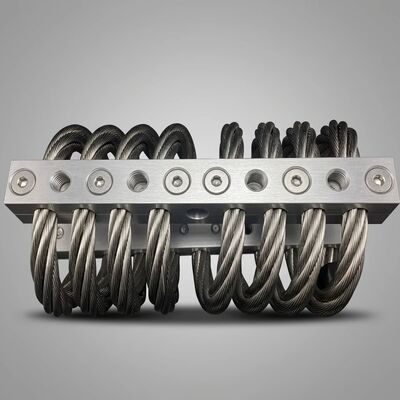

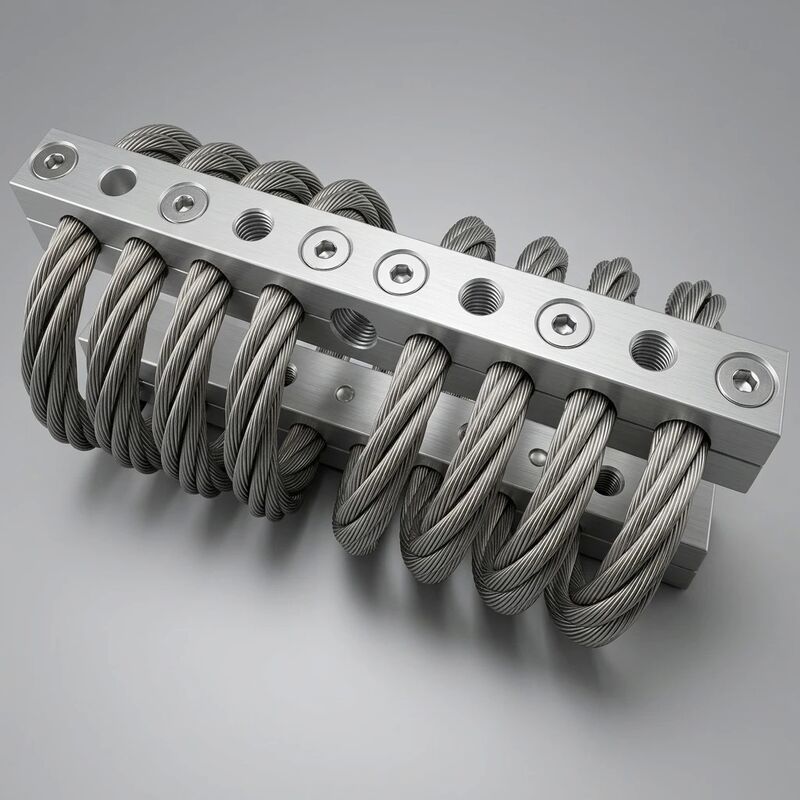

The JGX-1598D-657B belongs to a class of vibration isolation solutions where every load-bearing and energy-dissipating element is metallic—zero rubber, zero elastomer inserts, zero bonded joints. The core isolation mechanism is an 8-coil stranded AISI 316L stainless steel wire rope helix, clamped at both ends by CNC-machined 6061-T6 aluminum alloy blocks with hard anodized surface treatment. This all-metal architecture is the defining engineering choice that separates it from conventional rubber mounts and spring-damper assemblies: it cannot dry-rot, cannot creep under sustained compression, and cannot lose stiffness through chemical attack or thermal aging.

Why All-Metal Construction Matters for Long-Term Reliability

In a typical elastomeric isolator, the rubber element is simultaneously the spring, the damper, and the structural connection. When any one of those functions degrades—through ozone cracking, oil swelling, or compression set—the entire isolation system drifts out of specification. The JGX-1598D-657B decouples these roles physically. The wire rope helix provides the elastic restoring force (spring function) through geometric deformation of individual steel strands sliding against one another under load. That inter-strand friction is also the primary energy dissipation mechanism (damping function), yielding a consistent damping ratio between 0.15 and 0.25 across the full rated frequency band. The aluminum alloy clamping blocks serve exclusively as the structural interface to the equipment and foundation, with zero participation in the damping loop. Because all three functions are handled by separate physical elements operating within their linear design envelopes, performance remains stable for the full projected service life of over 20 years.

Maintenance-Free Operation: The Engineering Economics

The term maintenance-free life cycle is not a marketing claim—it is a direct consequence of materials selection and failure-mode elimination. Consider the maintenance ledger for a typical industrial vibration mount over 10 years:

• Rubber mounts: Inspect for surface cracks every 6 months; replace at 3-5 year intervals due to compression set and oxidation embrittlement; re-torque mounting bolts as the rubber creeps and loses preload.
• Spring-damper assemblies: Grease pivot bearings quarterly; inspect hydraulic seals for weepage monthly; replace damping fluid every 2-3 years; verify nitrogen precharge on gas-assisted units.
• JGX-1598D-657B: None of the above. No grease points exist. No seals can leak. No fluid requires replacement. The wire rope strands are protected by the electropolished passive layer; the anodized aluminum clamps resist galvanic corrosion even in coastal and offshore atmospheres. Bolt torque is maintained because no viscoelastic material creeps between the clamping faces.

For a fleet operator with 200 isolation mounts across a production line, eliminating this maintenance burden translates to measurable savings in technician labor hours, replacement part inventory, and unplanned downtime. The total cost of ownership (TCO) advantage over elastomeric alternatives typically pays back the unit price differential within the first 3–4 years of operation.

High-Damping Mechanism: Inter-Strand Friction Demystified

The JGX-1598D-657B achieves its high-damping characteristic (damping ratio ζ = 0.15–0.25) through a physical phenomenon called Coulomb friction damping between adjacent wire strands within each rope lay. When the helix deforms under external vibration input, individual wires within the strand bundle slide microscopically against their neighbors. This sliding friction converts kinetic energy into heat at the strand-to-strand interface—a purely mechanical energy dissipation mechanism that requires no viscous fluid, no constrained-layer damping polymer, and no tuned-mass absorber.

Three design parameters control the damping magnitude:

1. Wire diameter (6.0 mm): Larger wire cross-section increases inter-strand contact pressure per unit deformation, raising the Coulomb friction force threshold before slip initiates.
2. Coil count (8 coils): More coils increase total strand contact length, providing a larger aggregate surface area for friction work per cycle.
3. Strand lay geometry: The helix pitch angle and lay direction determine the normal force component at strand interfaces under each deformation mode (compression, shear, roll).

The practical result is a non-linear stiffness curve: at small vibration amplitudes, the Coulomb friction is not overcome and the isolator behaves as an elastic spring with relatively high stiffness and low energy dissipation. As amplitude increases past the slip threshold, inter-strand sliding engages progressively, stiffness softens, and damping rises—naturally protecting the isolated equipment from large-displacement shock events without any active control system.

Technical Specifications (Full)

Application Domains (Industrial & Civilian)

• Industrial Compressor Packages: Isolates reciprocating and rotary screw compressor skids in refineries, chemical plants, and gas processing facilities where hot surfaces preclude elastomeric mounts.
• Diesel & Gas Generator Sets: Provides 3-axis isolation for genset base frames in data centers, hospitals, and remote telecom towers, maintaining alignment during startup torque transients.
• Industrial Pump Skids: Absorbs hydraulic pulsation and cavitation-induced vibration in high-pressure multistage pump assemblies for water treatment and mining dewatering stations.
• HVAC & Chiller Equipment: Isolates large centrifugal chillers and air-handling units in commercial buildings, meeting structural-borne noise specifications without resilient pads that creep over time.
• Off-Highway Vehicle Cab Mounts: Protects operator cabins on construction excavators, agricultural harvesters, and forestry skidders from whole-body vibration exposure during extended shifts.
• Marine Engine & Deck Equipment: Dampens propulsion engine vibration and wave-slam shock on crew transfer vessels, fishing trawlers, and workboats operating in salt-spray environments.
• Rail Traction Equipment: Isolates underframe-mounted traction converters, brake resistor banks, and auxiliary power units on electric and diesel-electric locomotives.

Installation Guidelines

The JGX-1598D-657B mounts via four Ø10.5 mm through-holes arranged in a rectangular pattern on the upper and lower clamping blocks. Standard M10 hex-head bolts with flat washers and prevailing-torque lock nuts are recommended. The symmetrical coil geometry permits installation in any orientation, and the progressive spring rate eliminates the need for snubbers or travel stops in the compression direction under normal operating loads. For applications where the static load approaches the upper limit (500 kg), distributing the load across multiple units in parallel is recommended to maintain adequate isolation margin under dynamic peaks.

Quality Assurance & Traceability

Every JGX-1598D-657B unit is individually serialized with a laser-etched identifier on the aluminum clamp face. Factory acceptance testing includes dimensional conformance, coil symmetry check, static load-deflection curve verification (±5% tolerance), and surface finish inspection. Material certificates for the AISI 316L wire rope heat and the 6061-T6 billet lot are archived digitally and traceable to each serial number. WNRLN maintains ISO 9001:2015 certified manufacturing processes with full batch traceability from raw material receipt to final packaging.
