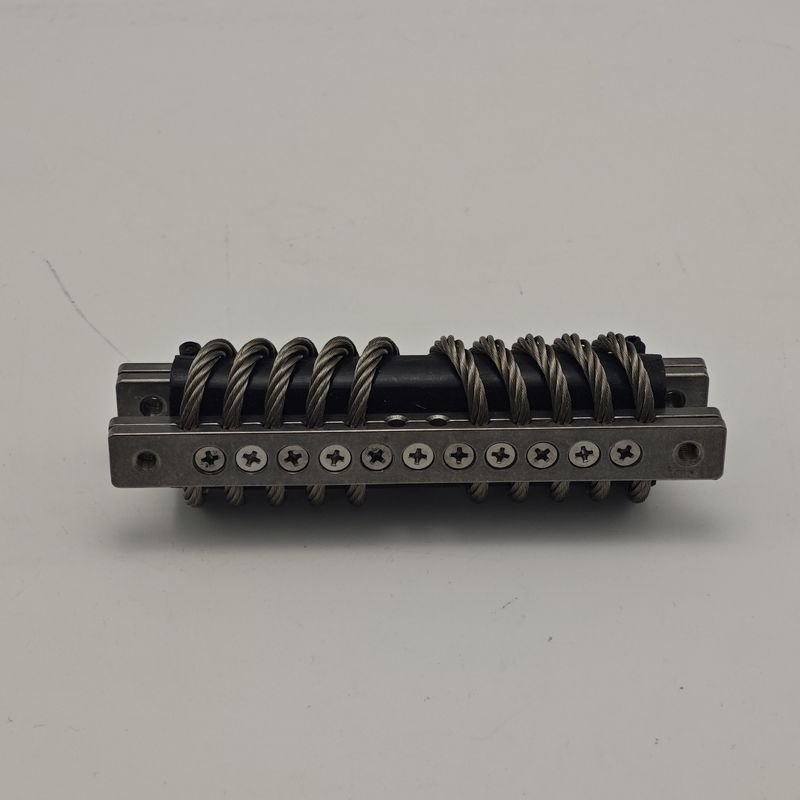

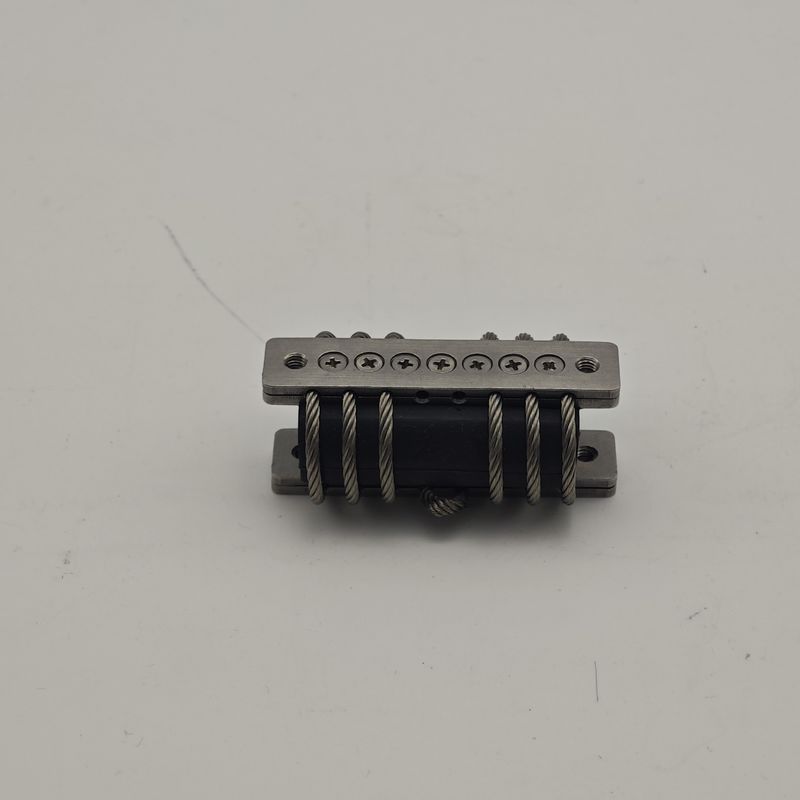

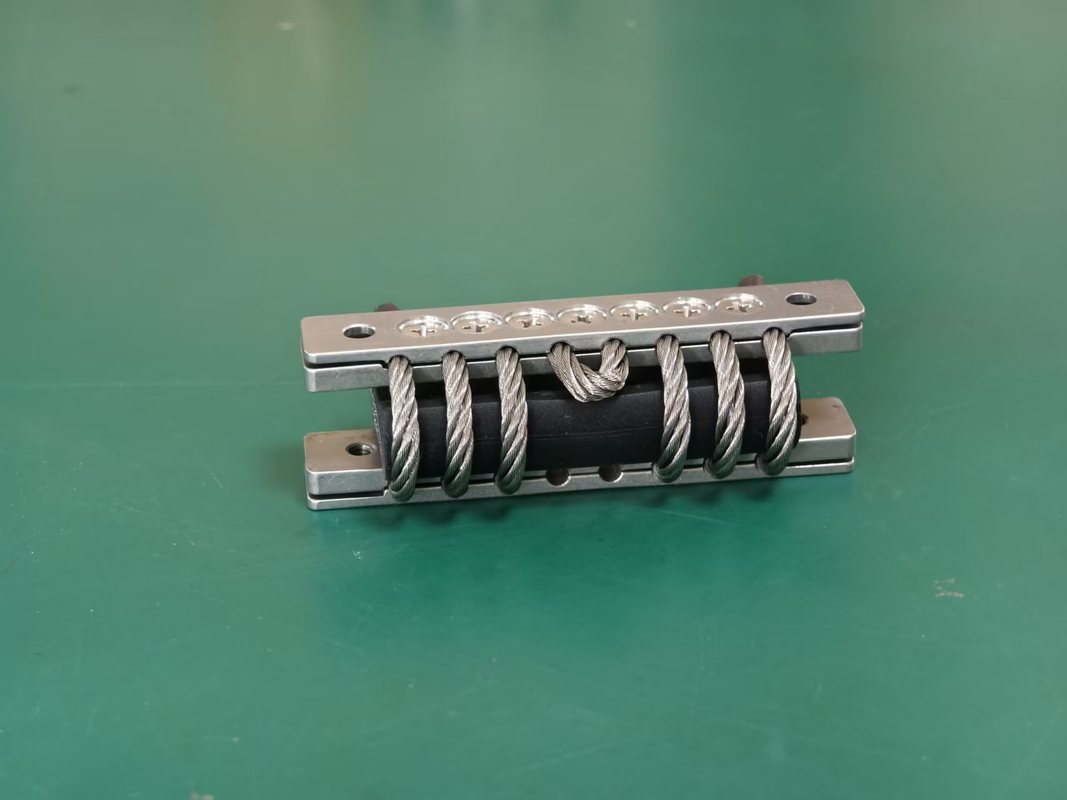

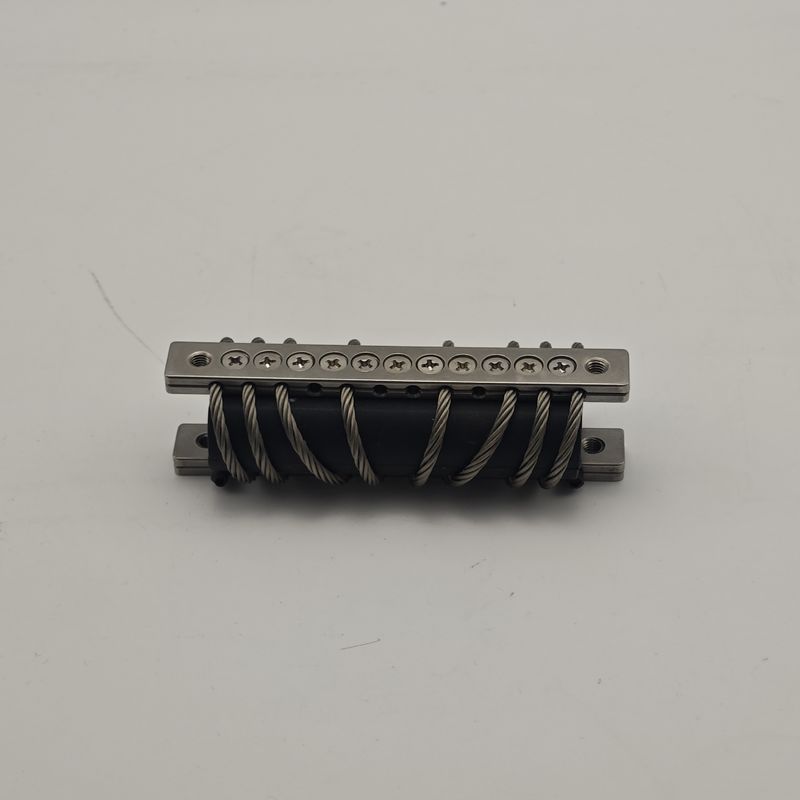

Name: Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-60A (N)
Availability: InStock

家へ > 製品 > カスタマイズされた製品 >

Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation

Customizable Size Vibration Isolator

Thermal Shock Resistance Shock Absorber

All-Metal Structure Wire Rope Isolator

起源の場所:

中国

ブランド名:

Hoan

モデル番号:

GX-60A (N)

連絡ください

引金を求めてください

Customizable GX-60A(N) Wire Rope Vibration Isolator with Good Thermal Shock Resistance and All-Metal Structure for Stable Operation

製品詳細

マーケティング:

ヨーロッパとアメリカの市場

サイズ:

カスタマイズ可能

形:

カスタマイズ,カスタマイズされていない

印刷:

はい

カスタマイズされたサンプル:

リクエストに応じて利用できます

熱衝撃耐性:

良好な耐熱衝撃性

長さ:

113m

材料:

様々な素材をご用意しております

生産時間:

カスタマイズの量と複雑さによって異なります

カスタマイズされた:

はい

配送:

海で

出荷時間:

輸送方法と目的地によって異なります

サービス温度:

1000℃-1800℃

ハイライト:

Customizable Size Vibration Isolator

Thermal Shock Resistance Shock Absorber

All-Metal Structure Wire Rope Isolator

支払いと送料の条件

最小注文数量

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

最高の価格を入手する

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

最高の価格を入手する

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

最高の価格を入手する

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

最高の価格を入手する

連絡ください

86-29-88292913

今連絡してください

製品説明

Customized Products The Ultimate Solution for Vibration and Noise Reduction GX-60AN Wire Rope Vibration Isolators

GX-N Series

Superior Protection, Stable Operation - Exploring Xi'an Hoan Microwave's GX-N Series Wire Rope Vibration Isolators

In the world of precision instruments, high-end equipment, and sensitive electronic devices, even tiny vibrations pose potential threats. Xi'an Hoan Microwave Co., Ltd., a leader in domestic vibration and noise reduction, deeply understands this challenge and has launched its flagship product - the GX-N Series wire rope vibration isolators. This product is more than just a component; it is a "guardian" for the stable operation of your critical equipment.

The core of the GX-N Series lies in its ingenious design. It uses high-quality stainless steel wire rope as the elastic element, formed through precision winding and curing processes. This structure endows it with superior performance unmatched by traditional rubber or spring isolators.

Excellent three-way equal stiffness vibration isolation performance for comprehensive protection from vibrations in any direction
All-metal structure with exceptional environmental adaptability, resisting extreme temperatures, oil, mold, and salt spray
Long service life that far exceeds organic material isolators, ensuring reliability for long-term deployed equipment
Military-grade production standards with strict quality control from material selection to final testing

Whether safeguarding the precision scanning of military radars or maintaining clear imaging of medical imaging equipment, the GX-N Series is a trustworthy choice. Choosing the GX-N means choosing peace of mind and durability.

Structural dimension diagram

Model Specifications

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and impact curve of GX-N series

Vibration

Impact

Technical Parameter Table

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95
Working Temperature	-55～+120
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s2
Vibration (Kv)	Accord with National Military Standard GJB150-16
