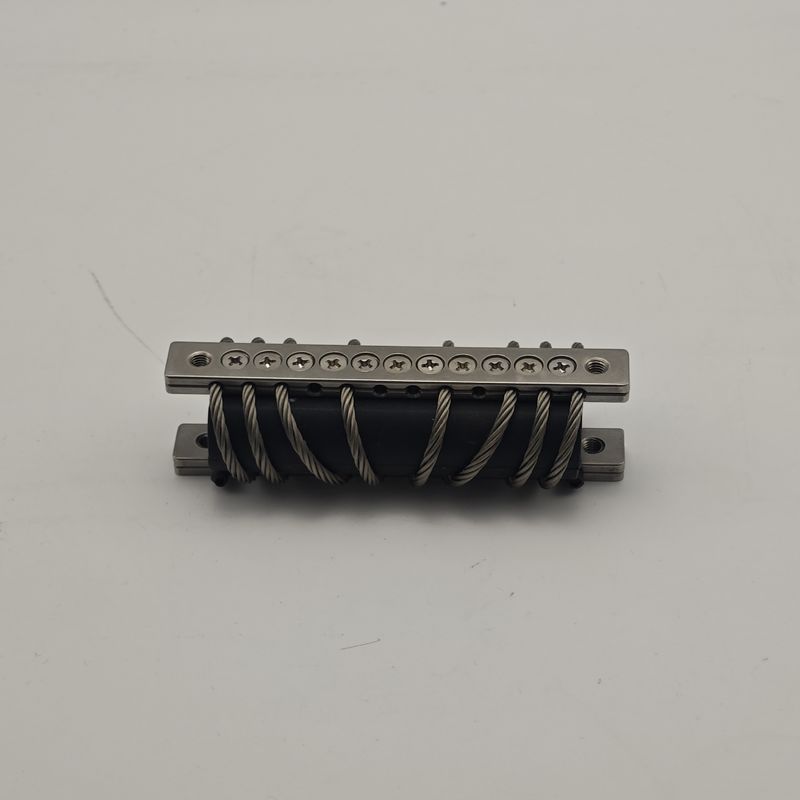

Name: Customized Wire Rope Vibration Isolators for Superior Protection of Sensitive Electronic Devices GX-10AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-10A (N)
Availability: InStock

家へ > 製品 > カスタマイズされた製品 >

Customized Wire Rope Vibration Isolators for Superior Protection of Sensitive Electronic Devices GX-10AN

Customized Wire Rope Vibration Isolator

Superior Protection Vibration Isolator

Sensitive Electronic Devices Shock Absorber

起源の場所:

中国

ブランド名:

Hoan

モデル番号:

GX-10A (N)

連絡ください

引金を求めてください

Customized Wire Rope Vibration Isolators for Superior Protection of Sensitive Electronic Devices GX-10AN

製品詳細

配送方法:

カスタマイズにより異なります

カスタマイズされた:

はい

スラッグ侵食耐性:

優れたスラッグ侵食耐性

リードタイム:

カスタマイズにより異なります

配送:

海で

熱ショック安定性:

熱ショック安定性

色:

カスタマイズにより異なります

ロゴ:

カスタマイズ可能

マーケティング:

ヨーロッパとアメリカの市場

デザイン:

カスタマイズ可能

材料:

カスタマイズにより異なります

サイズ:

カスタマイズにより異なります

製品タイプ:

カスタマイズされた

形:

カスタマイズ,カスタマイズされていない

ハイライト:

Customized Wire Rope Vibration Isolator

Superior Protection Vibration Isolator

Sensitive Electronic Devices Shock Absorber

支払いと送料の条件

最小注文数量

支払条件

L/C、D/A、T/T、D/P、Western Union、MoneyGram

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

最高の価格を入手する

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

最高の価格を入手する

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

最高の価格を入手する

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

最高の価格を入手する

連絡ください

86-29-88292913

今連絡してください

製品説明

Customized Products Superior Protection for Your Sensitive Electronic Devices GX-10AN Wire Rope Vibration Isolators

GX-N Series

Infusing "Stabilizing Power" into Precision Equipment - Introducing Xi'an Hoan Microwave's GX-N Series Wire Rope Vibration Isolators

In industrial environments where vibration and impact are ubiquitous, how to protect your precision equipment? Drawing on its profound accumulation of military technology, Xi'an Hoan Microwave Co., Ltd. has launched the high-performance GX-N Series wire rope vibration isolators, offering you solid and reliable solutions.

The GX-N Series is no ordinary rubber or spring shock absorber. It uses high-quality stainless steel wire rope as its core elastic component, crafted through precision winding and curing processes. This unique structure endows it with both the durability of metal and the nonlinear vibration isolation properties of springs.

Unlike traditional shock-absorbing materials that are prone to aging and have short fatigue lives, the wire rope itself is corrosion-resistant, resistant to high and low temperatures, and anti-aging - ensuring the isolator operates stably for extended periods even in harsh environments.

Xi'an Hoan Microwave's pursuit of quality is evident in every detail. The GX-N Series has undergone rigorous environmental adaptability and fatigue life tests, guaranteeing minimal performance degradation under continuous vibration and occasional impacts. This means installing a GX-N isolator for your equipment is like purchasing "long-term insurance" - effectively extending equipment lifespan and reducing precision loss and downtime caused by vibration.

Whether for airborne/shipborne electronic devices or laboratory precision instruments, the GX-N Series serves as an ideal "shock-absorbing foundation." We firmly believe that choosing Hoan Microwave means choosing peace of mind and reliability. Explore the GX-N Series now and infuse "Stabilizing Power" into your critical equipment.

Structural Dimension Diagram

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Vibration and Impact Curve of GX-N Series

Vibration

Impact

Technical Parameter Table

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downaward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95
Working Temperature	-55～+120
Shock(Ks)	30g/6ms
Peak Respones G	≤3.5km/s2
Vibration (Kv)	Accord with National Military Standard GJB150-16
