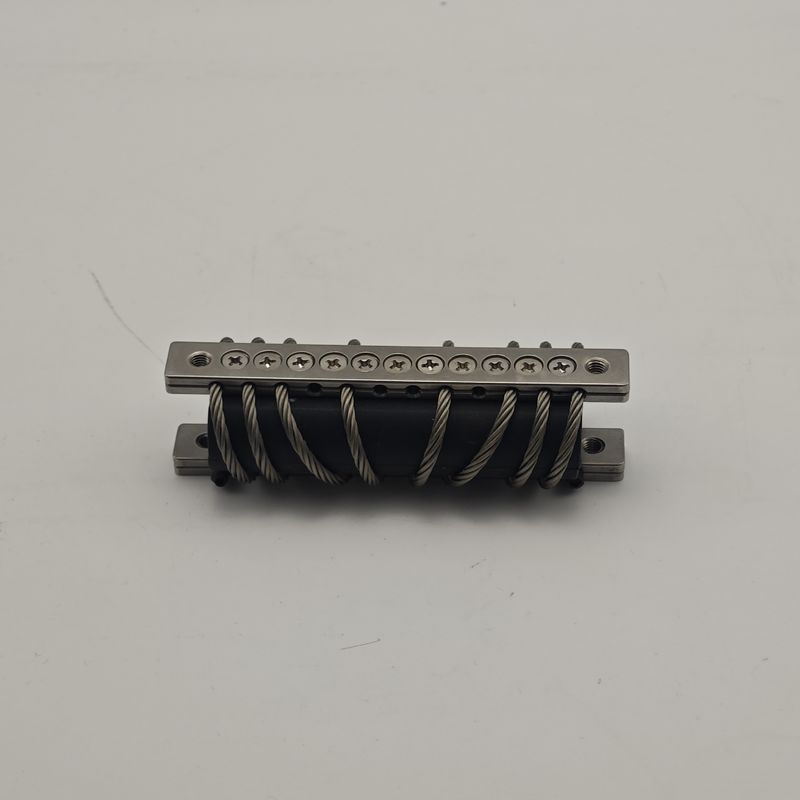

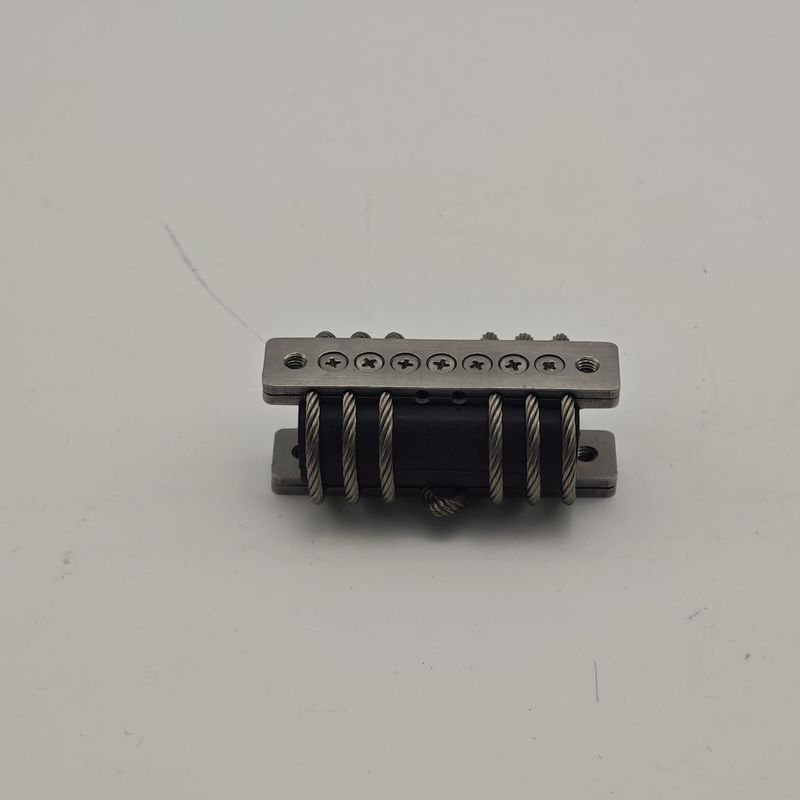

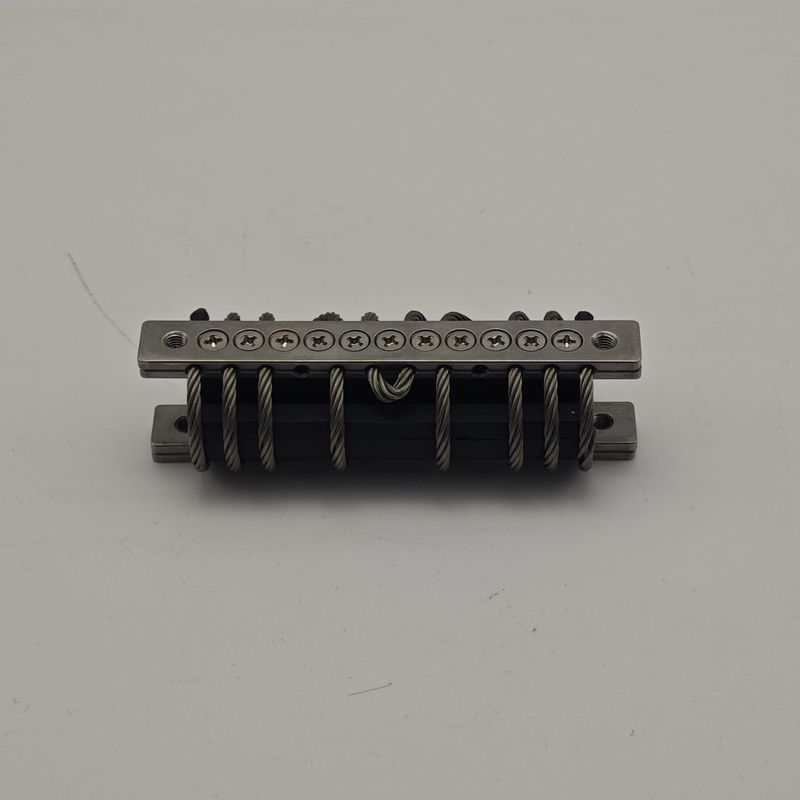

Name: Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-20A (N)
Availability: InStock

家へ > 製品 > カスタマイズされた製品 >

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

起源の場所:

中国

ブランド名:

Hoan

モデル番号:

GX-20A (N)

連絡ください

引金を求めてください

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

製品詳細

材料:

様々な素材をご用意しております

サービス温度:

1000℃-1800℃

カスタマイズされた:

はい

印刷:

はい

形:

カスタマイズ,カスタマイズされていない

熱衝撃耐性:

良好な耐熱衝撃性

サイズ:

カスタマイズ可能

化学的安定性:

非常に高い化学的安定性

使用法:

様々な食品,贈り物,文具

マーケティング:

ヨーロッパとアメリカの市場

アフターサービス:

カスタマイズ可能

キーワード:

耐火材料

厚さ:

0.15mm

支払方法:

カスタマイズ可能

ハイライト:

Quiet Operation Wire Rope Vibration Isolator

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

支払いと送料の条件

最小注文数量

支払条件

MoneyGram、Western Union、T/T、D/P、D/A、L/C

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

最高の価格を入手する

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

最高の価格を入手する

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

最高の価格を入手する

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

最高の価格を入手する

連絡ください

86-29-88292913

今連絡してください

製品説明

GX-N Series Wire Rope Vibration Isolators

Guardian of Quiet Operation - The Ideal Solution for Stable Equipment Performance

Persistent vibration is a hidden threat to precision equipment, causing loose screws, component wear, inaccurate measurements, and increased noise. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators effectively isolate harmful vibrations, ensuring quiet and stable equipment operation.

Key Features

Excellent damping performance through dry friction between wire rope strands
Dual-action vibration control: isolation through elastic deformation and energy dissipation via internal friction
Effective vibration isolation across wide frequency bands, especially medium and high frequencies
Significantly reduces operational vibration and structural noise in power equipment
Creates stable working platforms for electronic cabinets and precision instruments
Enhances equipment reliability and extends operational lifespan

Structural Dimension Diagram

Dimensions Table

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Specifications

Technical Parameter	Specification
Nominal Load (Pz)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock (Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Complies with National Military Standard GJB150-16

The GX-N Series has become the trusted vibration isolation solution for numerous leading enterprises across industries, ensuring equipment operates efficiently in tranquility.
